Introduction

When getting started implementing OTT Plugins it is imperative to understand these plugins use an event based framework. Essential to the process is using window.postMessage, which provides easy cross domain functionality.

The following diagram provides an overview of plugin functionality, emphasizing event dispatching and handling:

First, you see there are three entities involved in plugin implementation, those being:
- The user of the {{ site.product_short }} app
- The {{ site.product_short }} app itself
- The OTT plugin functionality
When the user performs an action, the {{ site.product_short }} app dispatches an event for which the plugin listens.
You can write code to perform actions in the event listener, and if needed access data in the event object data.
For some events you will never or rarely code actions to perform, while other events are repeatedly utilized.

The rest of this document describes fundamentals of using events in your plugins.

Dispatching events

Some of the OTT plugin elements have events you can dispatch. The following describes how to dispatch events in OTT Plugins.

The generic code for dispatching an event is:

window.postMessage({
  event: "eventType",
  data: {
    key1: value1,
    key2: value2,
    ...
  }
}, window.location.origin)

where

eventType (line 2): The event being posted, for example enablePlayerSidePanel
data (lines 4-5): Data passed for use

The following is a functioning example that adds a button to a details page, passing data for:

The text to appear on the button
The icon on the button
An ID for later use in a handler

window.postMessage({
  event: 'detailsPageAddCustomButton',
  data: {
    title:  'Test Button',
    font_awesome_icon: 'fa fa-info-circle',
    element_id: 'TEST_BTN_ID'
  }
}, window.location.origin);

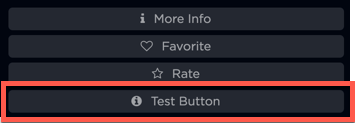

The button created would appear as follows:

Handling events

When events are dispatched, of course they must be handled. The basic syntax of the addEventListener() method is:

document.addEventListener(event, function, useCapture)

where

event: Event name
function: Function to run when the event occurs
useCapture: Very technical issue concerning when the event is executed; this is always false for OTT Plugins.

Following is the generic code for handling an event in OTT plugin code:

window.addEventListener("message", (event) => {
  const originsAllowed = [
    'validhost1',
    ...
  ];
  if (originsAllowed.includes(event.origin)) {
    // event.data.event contains the event name
    // event.data.data contains event data
  }
},
false
);

where

message (line 1): The event type, and when using postMessage() the type is always message
(event) => {} (line 1): The function that runs when the event occurs, defined as an arrow function
originsAllowed (lines 2-5): An array that contains the URL(s) from where your apps are served; most likely this is just one URL
if (originsAllowed.includes(event.origin)) {} (line 6): Checks to be sure the event is coming from a valid URL for your apps
code to execute (lines 7-8): Your business logic code to be executed in the handler; you can access the event object here (detailed later)
false (line 11): The useCapture value

The following is a functioning example that simply displays two different parts of the event object:

window.addEventListener("message", (event) => {
  const originsAllowed = [
    'https://myapplocation.brightcove.com'
  ];
  if (originsAllowed.includes(event.origin)) {
    console.log('event.data.event: ', event.data.event);
    console.log('event.data.data: ', event.data.data);  }
},
false
);

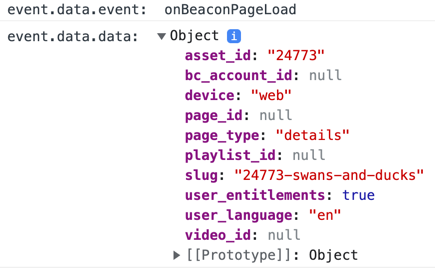

It is not uncommon to use the values of the event object in your code. Here are example values for event.data.event and event.data.data when an onBeaconPageLoad event is handled:
